Thumbnail Filmstrip of 6-Hole Hydraulic Disc Brake Rotor Images

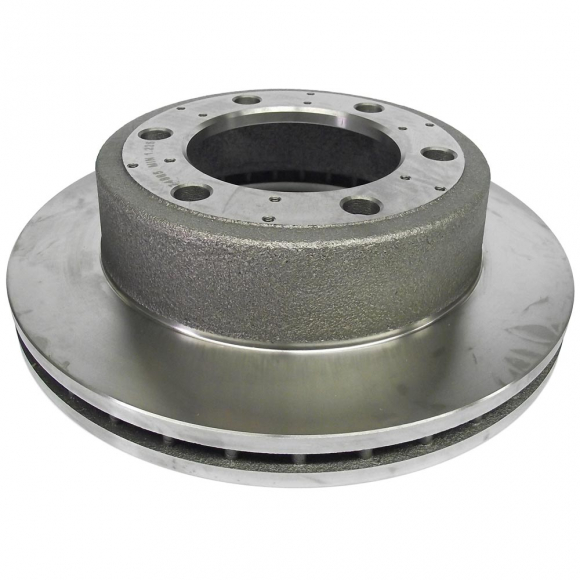

- Hydraulic Disc Brake Rotor
- Outside Diameter: 14.75"
- Width: 1.35"
- Overall Depth: 3.81"
- Pilot Diameter: 5.40"
- Bolt Circle: 7.25"
- No. Holes: 6
- Hole Size: 0.781"
- 12 Tapped Holes For ABS Ring Mounting
- Applications: 1990-1999 Ford F, L, LN Series 600-800 w/o Lucas Rear Brakes
- Cross References: 122700, 23-123443-002, 23123443002, E-11320, E11320, 141269, 122700M, 123443, 123480, 23122700, 23122700002, 2735, E-4227, E4227, 6054C, D6054C, 8514, 123468, 23123468, 23123468002, BD125085, 54103F, 54103P, 54103, 54105, 54105P, 54105F, 54109, 54109P, E4HZ1125A
