Thumbnail Filmstrip of Cast Iron Drive Hub, Eight 5/8" Drive Studs, Ten Wheel Studs for Aluminum Wheels Images

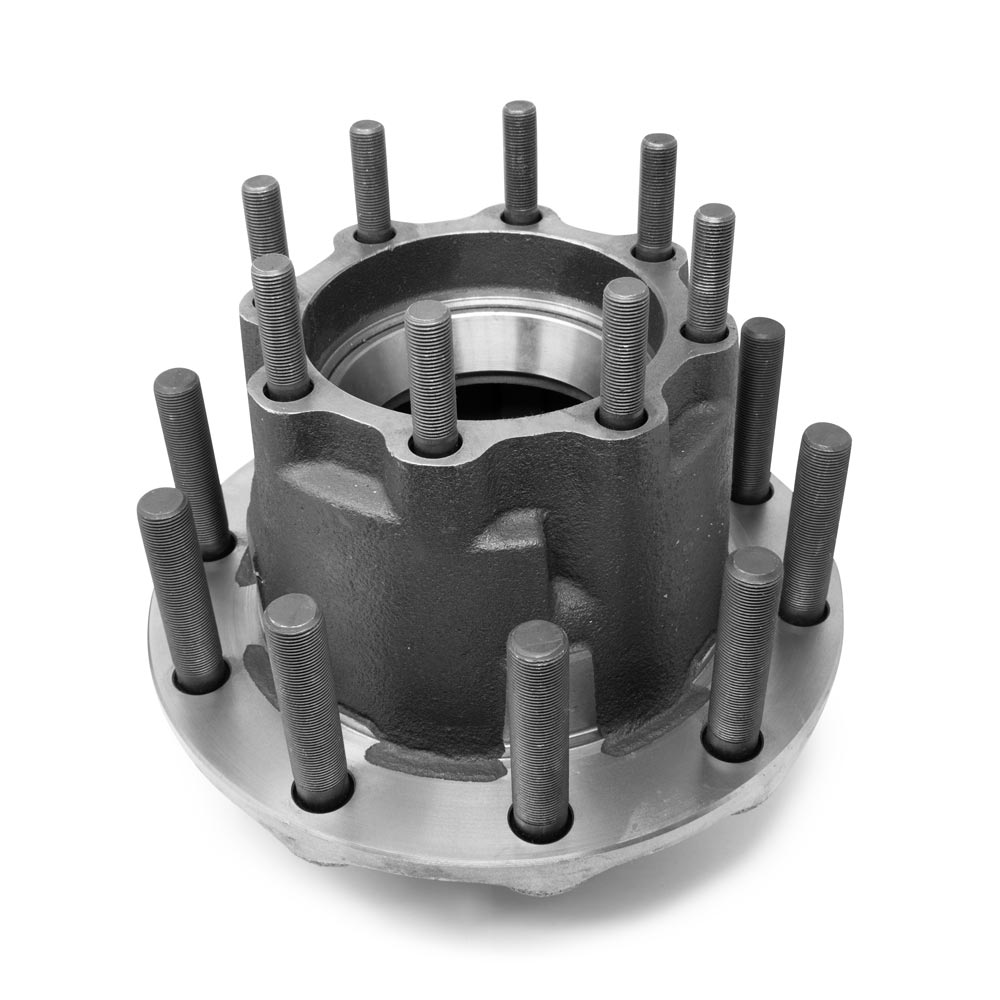

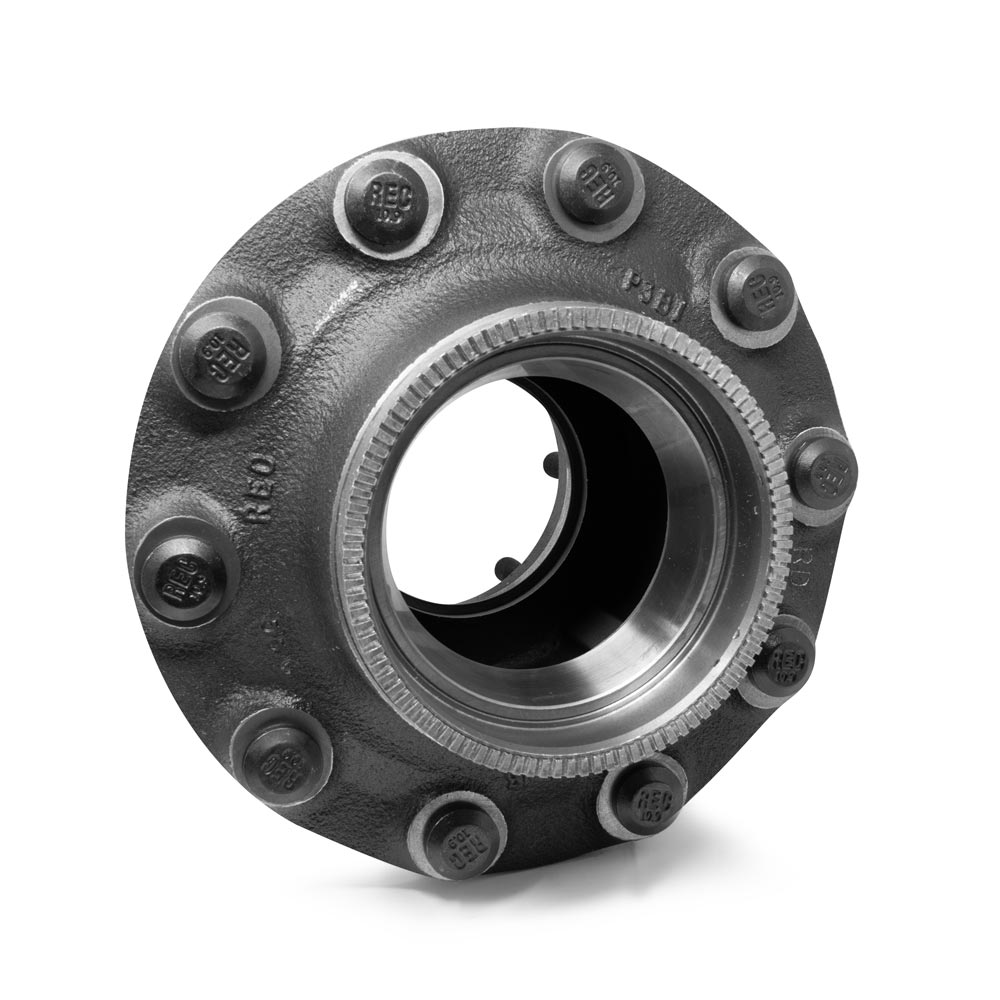

- Cast Iron Drive Hub
- Hub Material: Cast Iron
- Hub Type: Drive, 10 Stud, Hub Piloted
- Rated Capacity: 11,500 lbs
- Drive Studs: 5/8"
- Wheel Studs: M3669 for Aluminum Wheels
- Wheel Stud Bolt Circle: 11.25"
- Brake Type: Drum
- Drum Pilot: 8.78"
- ABS Tone Ring: Yes
- Barrel Length: Short (Approximately 1.5" from top of outer bearing cup to top of drive flange)
- Inner Bearing Cup: 592A
- Outer Bearing Cup: 572
- Cross References: 265613RD, 265613T, 26561--3T, 2238708, 4219201, 4219203, 2335-265613T, WEB265613T
