Thumbnail Filmstrip of 16.50" x 7.00" Brake Drum, 6 Hole - 11.00" Bolt Circle, Inboard Mounting Images
- Brake Drum - Inboard Mounting
- Brake Size: 16.50" x 7.00"
- (A) Brake Surface Diameter: 16.50"
- (B) Brake Surface Width: 7.63"
- (C) Bolt Circle Diameter: 11.00"
- (D) Bolt Hole Size: 0.78"
- (E) Pilot Diameter: 9.44"
- (F) Overall Depth: 8.41"

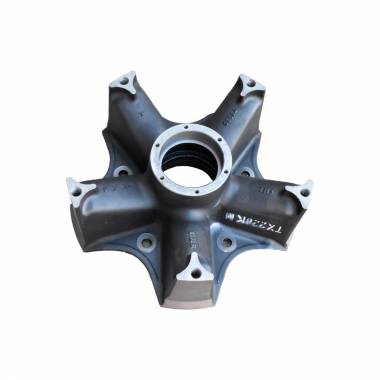

- Bolts to TX887K, 4714068007, and TX228K Wheels
- Cross References: 012677, 120017, 122155, 122222, 122822, 2353, 2537A, 2538, 03122222, 12677, 2353B, 2353C, 2537A, 2983, 2983A, 2983B, 2983CM, 2983D, 3556, 67518, A3544, 67518F, TLD107
