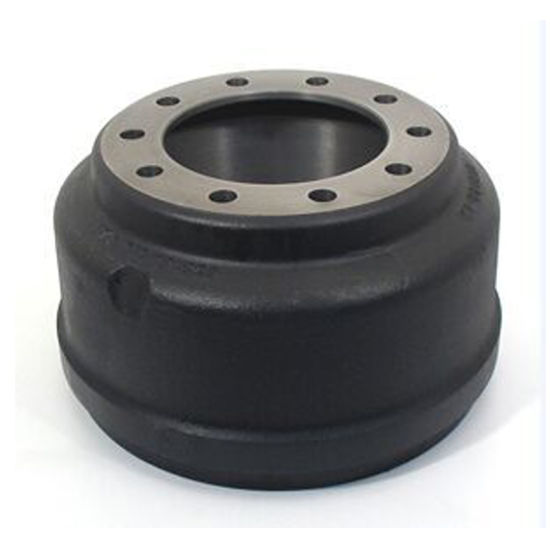

Thumbnail Filmstrip of 16.50" x 7.00" Brake Drum, 10-Hole - 11.25" Bolt Circle, Outboard Mounting, Replaces 3600A Drum Images
- Hub Piloted Brake Drum - Outboard Mounting
- Balanced Heavy Duty Drum - 116 Lbs.
- Brake Size: 16.50" X 7.00"

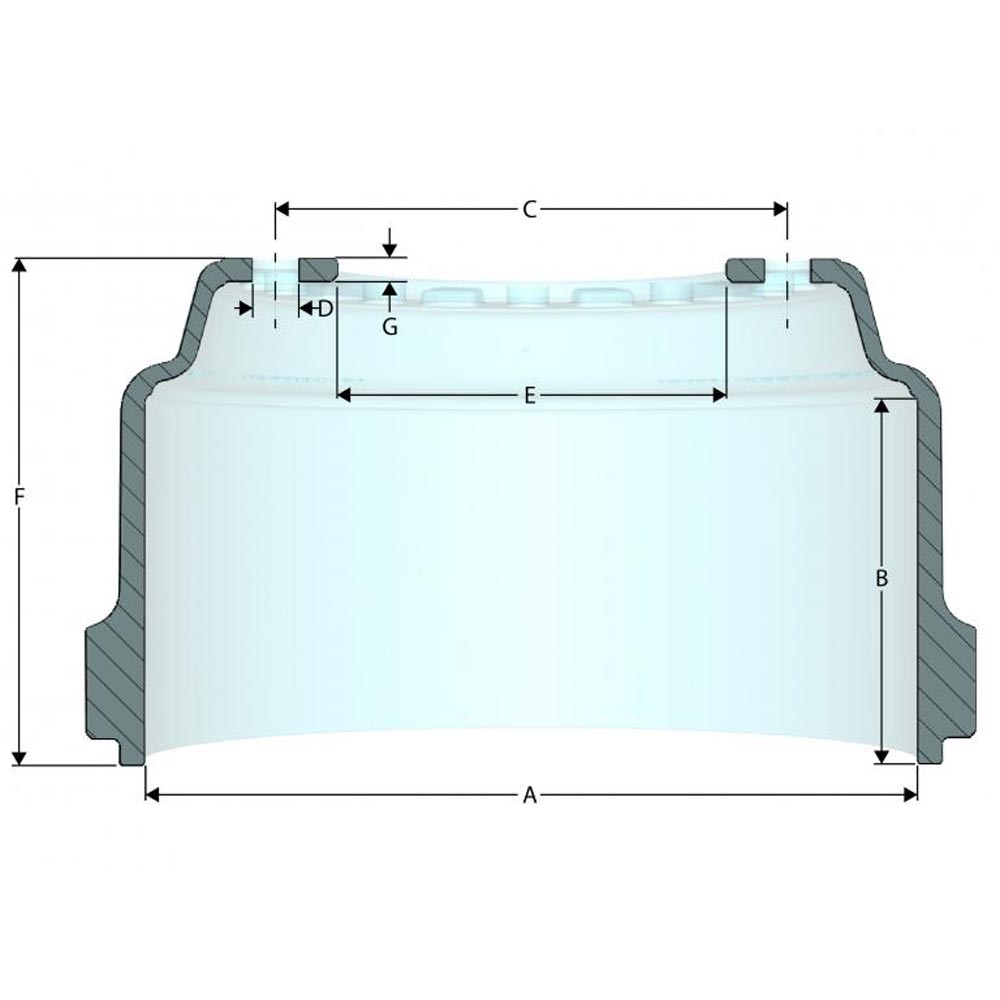

- (A) Brake Diameter: 16.50"
- (B) Brake Surface Width: 7.60"
- (C) Bolt Circle Diameter: 11.25"
- (D) Bolt Hole Size: 1.00"
- (E) Pilot Diameter: 8.78"
- (F) Overall Depth: 10.54"
- Brake Shoe Width: 7.00"
- Number of Bolt Holes: 10
- Replaces Gunite 3600A
- Cross References: 36A, 3600A, 106164, 106165, 106371, 106372, 106457, 230-8709, 2308709, 230-8712, 2308712, 235-9001, 2359001, 123022, 123207, 123363, 123365, 123404, HD1, 03-123207, 03123207, 16792, 16793, 8732, 2764-5, 27645, 66864F, E9HZ1126A, E9HZ-1126-A, 2018456, 3600AX, 2308712, 89996, 89996B, 100206, X60794, K-121-87, K12187, 53003-01, 5300301, 54261-018, 54261018, 60001-01, 6000101, REGU3600A, 3398-3600A, 03123207002, 3219-D-4892, 3219D4892, 53123537002, TWD3600A, 8219326, X-60794, X60794, 13104765, 1613125C1, 1618310C1, 1648360C1, 1648360C2, 1657235C1, GUN3600A, OTR1601, OTR1601B, 66864F20, 03-05449, 0305449, 3946066, 91001-0074, 3131988, 3946066, 910010074, MOT89996B, 03-00043, 0300043, 66864B, 66874B, 66874, 76864B, 03123788002, 56864F, ABP N42A1657VN8, ABPN42A1657VN8, D-35948, D35948, 356-D35948, 77864, 77864BW, 20458891
