Thumbnail Filmstrip of Hub & Drum Assembly for Dexter 5.2K - 7K Axles with 12" x 2" Brakes, 8 on 6.5" BC, 1/2" Studs Images
- Hub & Drum Assembly
- Eight 1/2" studs on 6.5" bolt circle
- Brake Size: 12" x 2"
- Capacity: 3,500 lbs.
- Inner Bearing Cone/Cup: 25580/25520 (Supplied with cup only, installed)
- Outer Bearing Cone/Cup: 14125A/14276 (Supplied with cup only, installed)

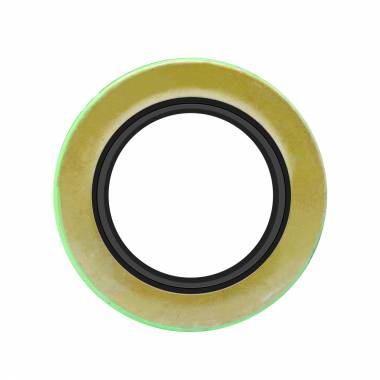

- Seal: 1010 (Grease, Dexter & Reliable) 1054 (Grease, Hayes) or 1063 (Oil equivalent to 1054 seal) (Not Included)
- Hub Cap: 2139 (Not Included)
- Replaces Dexter# 008-219-04
- Cross References: 82194, 008-219-04, 00821904, 821904, BD86517, 008-219-04, 00821904, 0380507, 09089100, 380507, 8219, BD86517, D865SW, E260423, E260430, K40810, K4081012, 09089100, 12310, 34105, 8480, 9089100, 9089254, 9089264, 42866
