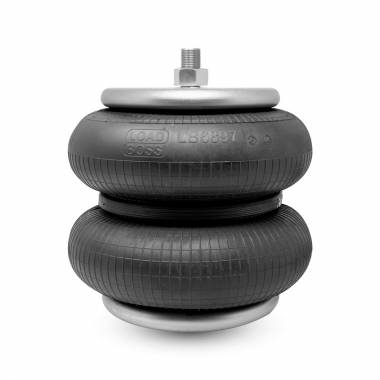

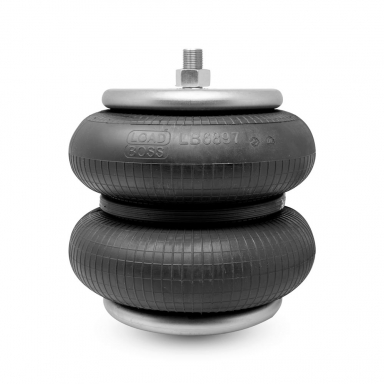

- Double Convoluted Air Spring
- Top Plate: 6.30" O.D.
- Top Plate Mounting (1) Combination Stud/Air Inlet 3/4" O.D. (Male) (16) - 1/4" I.D. (Female) NPT - 1.35" Tall
- Bottom Plate: 6.30" O.D.
- Bottom Plate Mounting: (1) Stud - 1/2" (13) - 0.85" Long
- Minimum Height: 3.12"
- Internal Bumper: No
- Goodyear Bellows Number: 578-92-3-202
- Goodyear Part Number: 2B9229
- Firestone Bellows Number: 20F
- Firestone Part Number: W013586897
- Triangle Bellows Number: 6325
- Triangle Part Number: 4505
- Watson & Chalin AS-0058
- Cross References: W01-358-6897, SP2B12R-6897, E-FS6897, 2B9-229, FS6897, FS-6897, RFS6897, WA01-6897, WA01-6897C, 4505, AS0058, M3528, M3528A, 2139229, 2B9229, 578923211, AS0058, AS0058C, 4505, AS4505, AS4505P, S-25065, S25065, 2B9229, 556238225, TAS6897, FD200-19, FD20019, 556238225, 578923211, 20, W01-358-6897, W013586897, AS-0058
