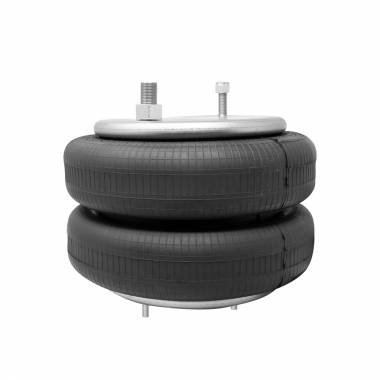

- Double Convoluted Air Spring
- Top Plate: 9.00" O.D.
- Top Plate Mounting: (1) Combination Stud/Air Inlet - 3/4" O.D. (Male) (16) - 1/4" I.D. (Female) NPT - 1.35" Tall - (1) Stud - 1/2" (20) UNF - 1.35" Tall - 6.20" Center to Center
- Bottom Plate: 9.00" O.D.
- Bottom Plate Mounting: (2) Studs - 3/8" (16) - 1.00" Tall - 6.20" Center to Center
- Minimum Height: 3.60"
- Internal Bumper: Yes
- Goodyear Bellows Number: 578-92-3-315
- Goodyear Part Number: 2B12-440
- Firestone Bellows Number: 228C-1.5
- Replaces: Reyco 20018-01 (86AR), Binkley XB-SPN-053-37
- Supersedes Firestone W01-358-7550
- Cross References: EFS7555, 2B12440, 7550, 4480, 1881301, 2001801, 2281C1.5, 2B12346, 2B12-440, 64284, FD 331-26 480, FD331-26480, FD33126480, W01-358-7555, W013587555, 18813-01, M3531, XBSPN05337, AS0087, 578923315
