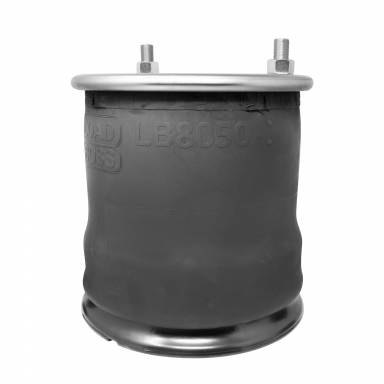

Thumbnail Filmstrip of Air Bag - Replaces Hendrickson S-4771, Watson & Chalin AS-0039 & Firestone W01-358-8050 Images
- Reversible Sleeve Air Bag
- Top Plate: 11.25" O.D.
- Top Plate Mounting: (2) Combination Stud/Air Inlet - 3/4" O.D. (Male) (16) - 1/4" I.D. (Female) NPT - 7.75" Center to Center
- Bottom Piston: 11.45" O.D.
- Bottom Piston Mounting: (4) Threaded Holes 1/2" - (13) - 7.87" Center to Center
- Extended Height: Uninflated - 19.29"
- Collapsed Height: 5.9"
- Internal Bumper: Yes
- Spring Pro Bellows Number: 888050
- Goodyear Bellows Number: 566-28-3-015
- Goodyear Part Number: 1R14-039
- Firestone Bellows Number: 1T19ZK-5.7
- Firestone Part Number: W01-358-8050
- Supersedes Firestone Bellows Number: 1T19J-6
- Replaces: Hendrickson Trailer S4771
- Repalces Hendrickson Can. B-12541-013
- Replaces Tuthill-Reyco 23631-01
- Replaces Watson & Chalin AS-0039
- Cross References: 8050, E1R14039, 1R14039, 1T19J6, 8320, 566283023, 1R14039, 1R14-039, B-4771, 36514-13, 1685174C1, 236631-01, 8320, SC2052, 64254, 11 10.5C-16 A 320, 1110.5C-16A320, 1110.5C16A320, W01-358-8050, W013588050, AS80500, M3510, M3510A, 1619466007, 1T19ZK5.7, 1T19ZK57, 566283015, NAD17936, P108050, P108050C, P8050G, S4771, S-4771-24, S477124, 1R14-083, 1R14083, TAS8050, 3651413, B12514013, 201680, 1003588050C, 57008050, 2363101, 3130498, AS0039, 1R14055, 1R14083, 1R14244, 11105C16A320, W01-358-8050, W013588050, 1T19ZK5.7, 1T19ZK57, C01-358-0513, C013580513
