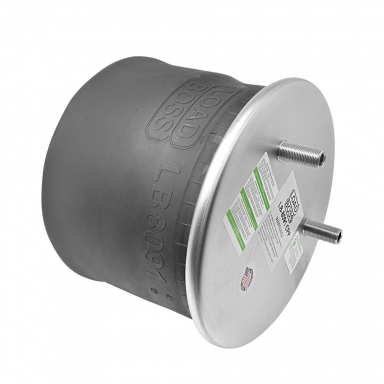

Thumbnail Filmstrip of Reversible Sleeve Air Bag - Replaces Hendrickson S-20901 and Firestone W01-358-8091 Images
- Reversible Sleeve Air Bag
- Top Plate: 11.27" O.D.
- Top Plate Mounting: (2) Combination Stud/Air Inlet - 3/4" O.D. (Male) (16) - 1/4" I.D. (Female) NPT - 5.50" Center to Center
- Bottom Piston: 10.13" O.D.
- Bottom Piston Mounting: (1) Stud 1/2" - (13) UNC
- Extended Height: Uninflated - 19.00"
- Collapsed Height: 6.10"
- Internal Bumper: Yes
- Spring Pro Bellows Number: 888091
- Goodyear Bellows Number: 566-28-3-015
- Goodyear Part Number: 1R14-171
- Firestone Bellows Number: 1T19FC-6
- Firestone Part Number: W01-358-8091
- Supersedes Firestone Bellows Number: 1T19FC-5
- Replaces Hendrickson Trailer S20901 (Intraax 250) Reuse metal disk
- Replaces Hendrickson Trailer S21784 with metal disk for piston support
- Cross References: 1R14171, 8523, C20901, S20901, S21784, 1R14171, 1R14-171, 64421, 11 10.5A-16 P 523, 1110.5A-16P523, 1110.5A16P523, 21784, 20901, W013588091, W01 358 8091, C-20901, S-20901
