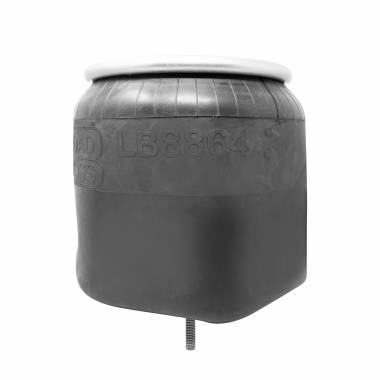

Thumbnail Filmstrip of Air Bag - Replaces Peterbilt & KW Low Air Leaf 03-08716 & C81-1011 Images
- Reversible Sleeve Air Spring
- Top Plate: 8.98" O.D.
- Top Plate Mounting: (2) 3/8"- (16) Threaded Holes - 6.21" Center to Center
- Top Plate: (1) Air Inlet - 1/2" NPT
- Bottom Piston - 7.92" O.D.
- Bottom Piston Mounting: (1) Threaded Hole - 1/2" (13)
- Extended Height: Uninflated - 24.50"
- Collapsed Height: 7.75"
- Internal Bumper: No
- Spring Pro Bellows Number: 888864
- Goodyear Bellows Number: n/a
- Goodyear Part Number: n/a
- Firestone Bellows Number: 1T15M-9
- Firestone Part Number: W01-358-8864
- Replaces: Peterbilt 03-08716 and Peterbilt C81-1011
- Cross References: 0308716, 8864, W013588864, C81-1013, C811013, W016875468, W016875469, W016875470, C81-1017, C811017, AB1DK23L8864, 0308716, 1R121097, 5468, 5469, 5470, 888864, 1T15MA9, C811011, C811013, W016875468, W016875469, W016875470, WO16875468, WO16875469, C81-1013, C811013, 6364, 1T15K2, 1T15M9, W01-358-8864, W013588864, 91019P898, C01-358-1000, C013581000
