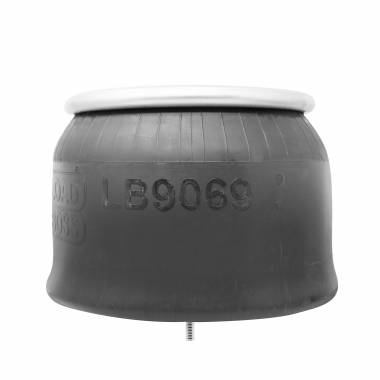

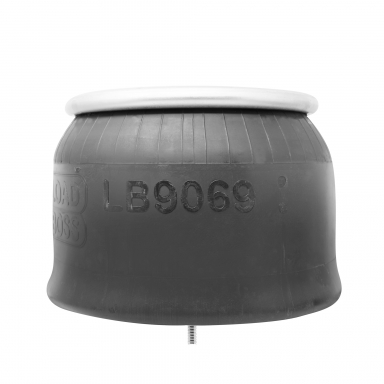

Thumbnail Filmstrip of Air Bag - Replaces Peterbilt 03-01649, 03-02456, and 03-04759 & Firestone W01-358-9069 Images
- Reversible Sleeve Air Spring
- Top Plate: 9.00" O.D.
- Top Plate Mounting: (2) 3/8" - (16) Threaded Holes - 6.20" Center to Center
- Top Plate: (1) Air Inlet - 1/2" NPT
- Bottom Piston: 9.50" O.D.
- Bottom Piston Mounting: (1) 1/2" Stud (13)
- Extended Height: Uninflated - 18.00"
- Collapsed Height: 7.50"
- Internal Bumper: Yes
- Spring Pro Bellows Number: 889069
- Goodyear Bellows Number: 566-24-3-038
- Goodyear Part Number: 1R12-069
- Firestone Bellows Number: 1T15M-4
- Firestone Part Number: W01-358-9069
- Replaces: Peterbilt 03-02456, Peterbilt 03-04759, Peterbilt 03-01649, Peterbilt 03-06746, Peterbilt 03-07112, Peterbilt 03-02038 (Air-Trac), Peterbilt 03-10042
- Cross References: 9069, 889069, 1R12069, E1R12069, 1R12669, 1T15K4, 1T15M4, 566243038, 8312, 352-9069, 554764C1, SC2034, 03-01649, 03-02038, 03-02456, 03-04759, 03-07112, 03-10042, AS506-9069, AS504-9069, AS-0077, 1R12-069, 1R12-669, 1R12669, 64274, 9 10-14 P 312, 910-14P312, 91014P312, W01-358-9069, W013589069, C816022, C81 6022, C81-6022
