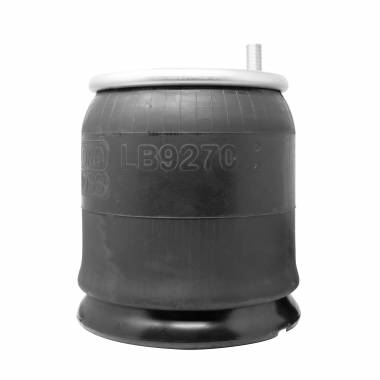

Thumbnail Filmstrip of Air Bag - Replaces S20010 Hendrickson Trailer HT230T & Firestone W01-358-9270 Air Springs Images
- Reversible Sleeve Air Spring
- Top Plate: 8.98" O.D.
- Top Plate Mounting: (1) Combination Stud/Air Inlet 3/4" O.D. (Male) (16) - 1/4" I.D. (Female) NPT
- Bottom Piston: 9.46" O.D.
- Bottom Piston Mounting: (4) 1/2" - (13) Threaded Holes - 4.00" Center to Center
- Extended Height: Uninflated - 16.90"
- Collapsed Height: 5.60"
- Internal Bumper: Yes
- Spring Pro Bellows Number: 889270
- Goodyear Bellows Number: 566-26-3-053
- Goodyear Part Number: 1R13-119 or 1R13-077
- Firestone Bellows Number: 1T15VP-4
- Firestone Part Number: W01-358-9270
- Piston Material: Steel
- Replaces: Hendrickson Trailer S-20010 (HT230T)
- Cross References: 9270, 889270, 1R13077, 1R13119, 1T15VM35, 9276, S25559, 8433, C20010, S20010, 352107, 1R13119, W013589270, W01 358 9270, AS-0084, 64287, 9 10-13.5 S 433, 910-13.5S433, 91013.5S433, M3542, M3542A, 1R13119, 1R13077, 1619466003, 1R13119, 1R13239, 1T15VM3.5, 1T15VM35, 1T15VP4, 20010, 566243036, 566262119, 566263036, 566263037, 566263098, 8800, 91013.5S433, 910135S433, 9270G, 9276, 9579, C25559, P9270, P9270G, S25559, 8433, C20010, S20010, 1R13102, 352107, 1R13119, 566263053, TAS9270, W01-358-9270, W013589270, 1003589270C, AS0084, 1R13259, 9 10-13.5 S 433, C01-358-5090, C013585090
