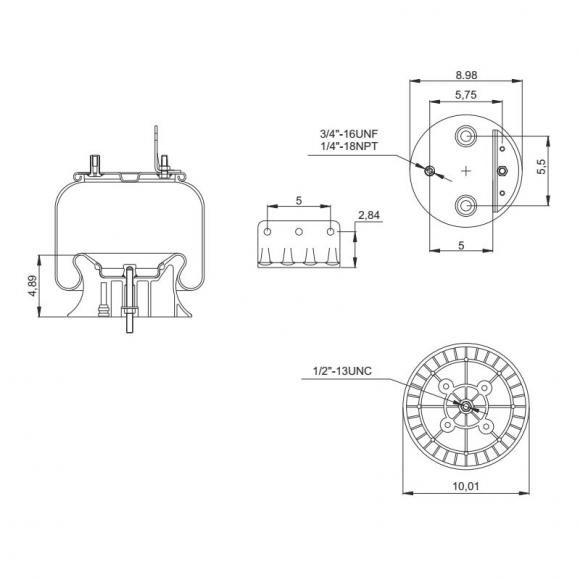

Thumbnail Filmstrip of Air Bag - Replaces 2027911C1 Navistar & Firestone W01-358-9648, Single Stud On Bottom Piston Images
- Reversible Sleeve Air Spring
- Top Plate: 8.98" O.D.
- Top Plate Mounting: (1) Combination Stud/Air Inlet 3/4" O.D. (Male) (16) - 1/4" I.D. (Female) NPT - (1) 1/2" Stud (13) - 5.75" Center to Center
- Top Plate Includes a Two Hole Angled Mounting Bracket 5.00" Center to Center & 2.84" From Top Plate to Center of Bracket Mounting Hole
- Bottom Piston: 10.01" O.D.
- Bottom Piston Mounting: (1) Stud - 1/2" (13) UNC
- Extended Height: Uninflated - 22.00"
- Collapsed Height: 5.90"
- Internal Bumper: No
- Spring Pro Bellows Number: 889648
- Goodyear Bellows Number: 566-24-3-038
- Goodyear Part Number: 1R12-538
- Firestone Bellows Number: 1T15MT-8
- Firestone Part Number: W01-358-9648
- Upper Mounting Bracket Holes: 1/2" (3)
- Upper Mounting Bracket Hole Spacing: 2-1/2"
- Replaces: Navistar 2027911C1 & 2027911C2
- Cross References: 889648, 9648, 1R12538, 2027911C1, 2027911C2, 566241000, W013589648, W01 358 9648, 1R12-538, 64263, 9 10-17.5 P 456, 910-17.5P456, 91017.5P456
