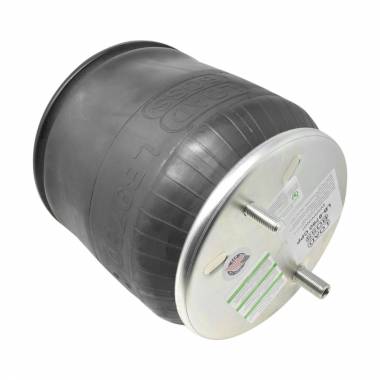

Thumbnail Filmstrip of Air Bag With Plastic Base - Replaces Firestone W01-358-9780 & Freightliner 13810-000 Images
- Reversible Sleeve Air Spring With Platic Base
- Top Plate: 8.97" O.D.
- Top Plate Mounting: (1) Combination Stud/Air Inlet 3/4" O.D. (Male) (16) - 1/4" I.D. (Female) NPT - (1) 1/2" Stud (13) - 6.20" Center to Center
- Bottom Piston: 10.66" O.D.
- Bottom Piston Mounting: (1) Stud - 1/2" (13) UNC - 2.00" Long
- Extended Height: Uninflated - 23.00"
- Collapsed Height: 8.75"
- Internal Bumper: No
- Goodyear Bellows Number: 566-24-3-108
- Goodyear Part Number: 1R12186, 1R12189, 1R12303
- Firestone Bellows Number: 1T15ZR-6
- Firestone Part Number: W013589780
- Freightliner Part Number: 16-13810-000, 681-320-0017
- Cross References: 9780, 889780, M3550, M3550A, 1R12186, E1R12186, 16-19769, 16-19769-000, 1613810000, 1616773, 1616773000, 1619468000, 1619769, 1619769000, 1R12189, 1R12303, 1T15X, 1T15ZR3, 1T15ZR6, 566243108, 566243274, 566243275, 5779, 9105.16P382, 910516P382, 910S-16, 910S16, 9759, 9773, 9780G, 9782, A1614004000, A1618335000, A1826071000, P9780, P9780G, W013589759, W013778530, W013778537, 8382, AS-8382P, AS8382P, 1R12303, 366243275, TAS9780, C01-358-0572, C013580572
