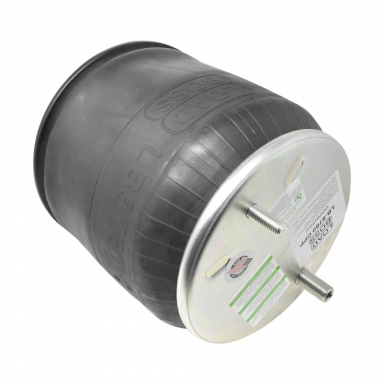

Thumbnail Filmstrip of Air Bag With Aluminum Base - Replaces Freightliner 16-1673-000 & Firestone W01-358-9781 Images
- Reversible Sleeve Air Spring With Aluminum Base
- Heavy duty version of 889780 (Plastic Base)
- Top Plate: 9.00" O.D.
- Top Plate Mounting: (1) Combination Stud/Air Inlet 3/4" O.D. (Male) (16) - 1/4" I.D. (Female) NPT - (1) 1/2" Stud (13) - 1.35" Tall - 6.20" - Center to Center
- Bottom Piston: 10.62" O.D.
- Bottom Piston: 6.89" Long
- Bottom Piston Mounting: (1) Stud - 1/2" (13) UNC - 2.00" Long
- Extended Height: Uninflated - 23.00"
- Collapsed Height: 8.75"
- Internal Bumper: No
- Spring Pro Bellows Number: 889781
- Goodyear Bellows Number: 566-24-3-108
- Goodyear Part Number: 1R12-603
- Firestone Bellows Number: 1T15ZR-6
- Firestone Part Number: W01-358-9781
- Replaces: Freightliner 16-13840-000, Freightliner 681-320-0017, 16-1673-000
- Cross References: 9781, 889781, A16-18335-000, A1618335000, 1R12186, E1R12186, 1616773, 1616773000, 1R12189, 1R12303, 1T15ZR6, 566243108, 566243275, 5779, 6813200017, 9773, 9782, A1614004000, A1826071000, W01-358-9781, W013589781, W01-358-9780, W013589780, W01 358 9781, 1R12-303, 64266, 9 10S-16 A 382, FS9781, FS9780, 1R12-303, 1R12303 910S-16A382, 910S16A382, W013778529, 16-13810-002, 1613810002, 681-320-00-17, 6813200017 16-17575-000, 1617575000, 16-19468-000, 1619468000, 16 19468 000, 16-14377-000, 1614377000 16 14377 000, W01-358-5779, W013585779, 16-19768-000, 1619768000, W01-377-8536, W013778536, A1621478001
