    12-1/4" x 4" Brake Drum for Dexter 10K Brakes

    Thumbnail Filmstrip of 12-1/4" x 4" Brake Drum for Dexter 10K Brakes Images

      Purchase 12-1/4" x 4" Brake Drum for Dexter 10K Brakes

      SKU: 9273PTP 12-1/4" x 4" Brake Drum for Dexter 10K Brakes

      • This brake drum is used on Dexter Axle 10K & 13D 12.25" x 4" brakes
      • Brake Diameter: 12-1/4"
      • Brake Width: 4"
      • No. Bolt Holes: 8
      • Bolt Circle: 7-1/2"
      • Includes ABS exciter ring for hydraulic and air applications, remove ABS ring for electric brake applications
      • Replaces Dexter#: 009-027-03
      • Cross References: 9273, 00902703, 009-027-03, 00902703, 009-027-01, 00902701, 224172, 927, 9271, 9273M

      Related Products


      Brake Drum Mounting Bolt for 10K, 12K, and 15K Axles, 1/2"-13 Thread, 1-3/4" Long
      Brake Drum Mounting Bolt for 10K, 12K, and 15K Axles, 1/2"-13 Thread, 1-3/4" Long

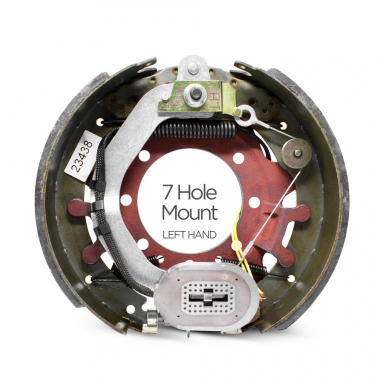

      12-1/4" x 4" 10K HD FSA LH Electric Brake Assy w/ 7-Bolt Backing Plate for Dexter Trailer Axles
      12-1/4" x 4" 10K HD FSA LH Electric Brake Assy w/ 7-Bolt Backing Plate for Dexter Trailer Axles

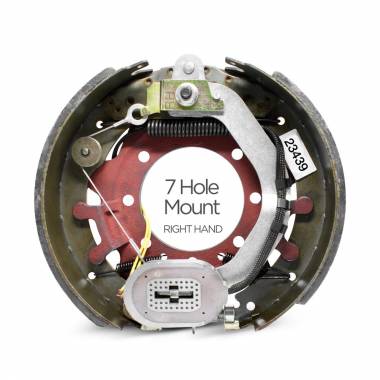

      12-1/4" x 4" 10K HD FSA RH Electric Brake Assy w/ 7-Bolt Backing Plate for Dexter Trailer Axles
