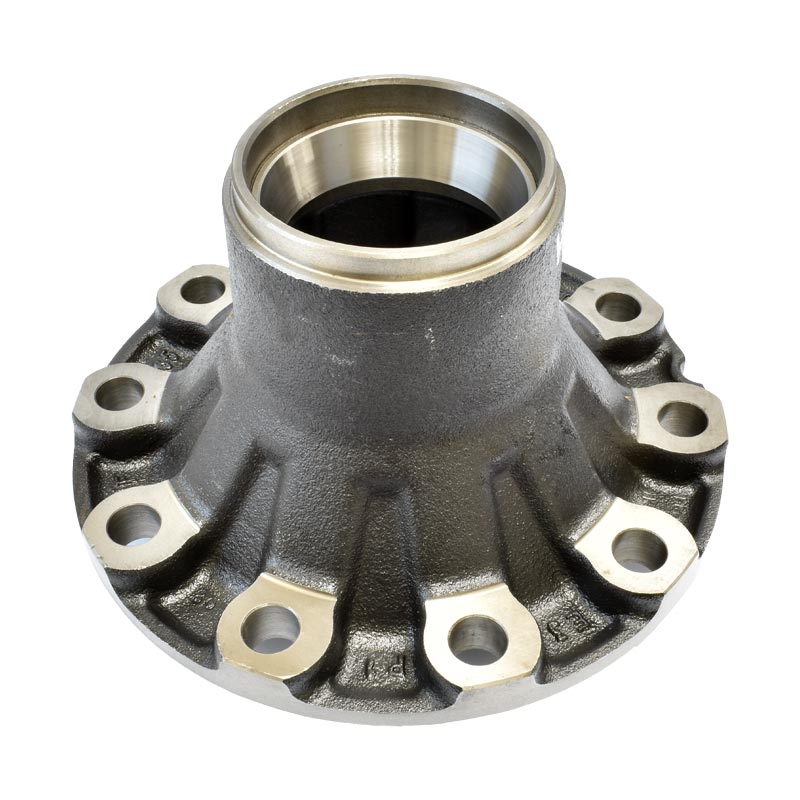

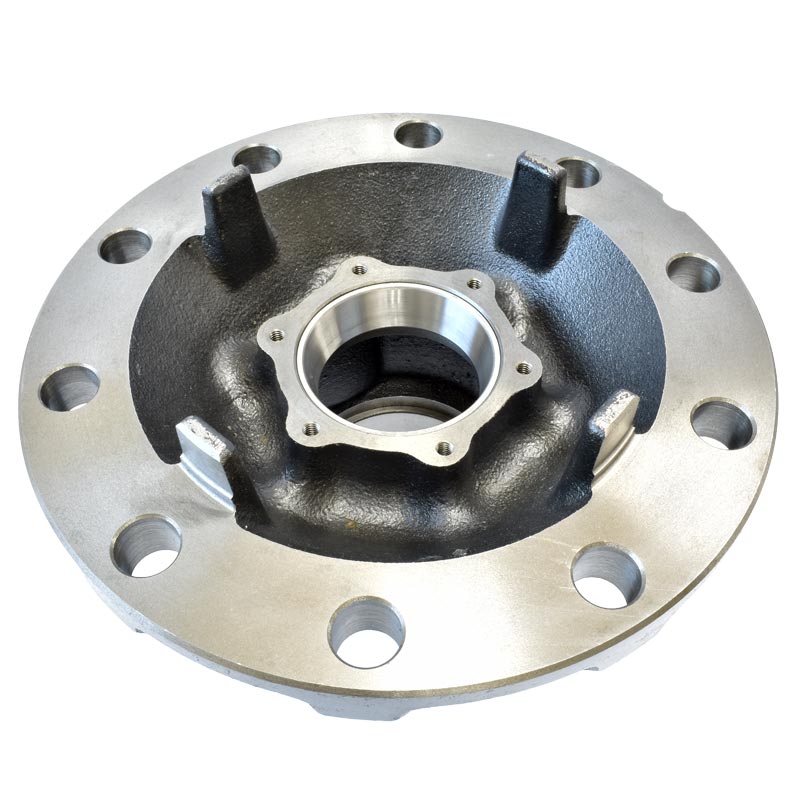

- Disc Wheel Hub FF-Spindle 10 Studs
- Wheel Stud/Rim Bolt Circle: 11.25"
- Bearing Cup Spacing: 3.38"
- Wheel Mount Offset: 5.56"
- Overall Length: 6.24"
- Seal Bore Dia: 4.83"
- Drive/Hub Cap Bolt Circle: 4.5"
- Drum/Rotor Pilot Dia: 8.78"
- Material: Ductile Iron
- Wheel/Rim Bolt Studs No: 10
- Inner Bearing Cone: HM212049
- Inner Bearing Cup: HM212011
- Outer Bearing Cone: 3782
- Outer Bearing Cup: 3720
- Cross References: HF801K, HF983, HF983PTP, E5115, H346, H346K, H346KX, H478K, HF478K, HF599K, HF624K, HF668, HF668K, HF766, HF766K, HF794, HF794K, HF800, HF800K, HF801, HF801K, HF847, HF847K, HF983K
